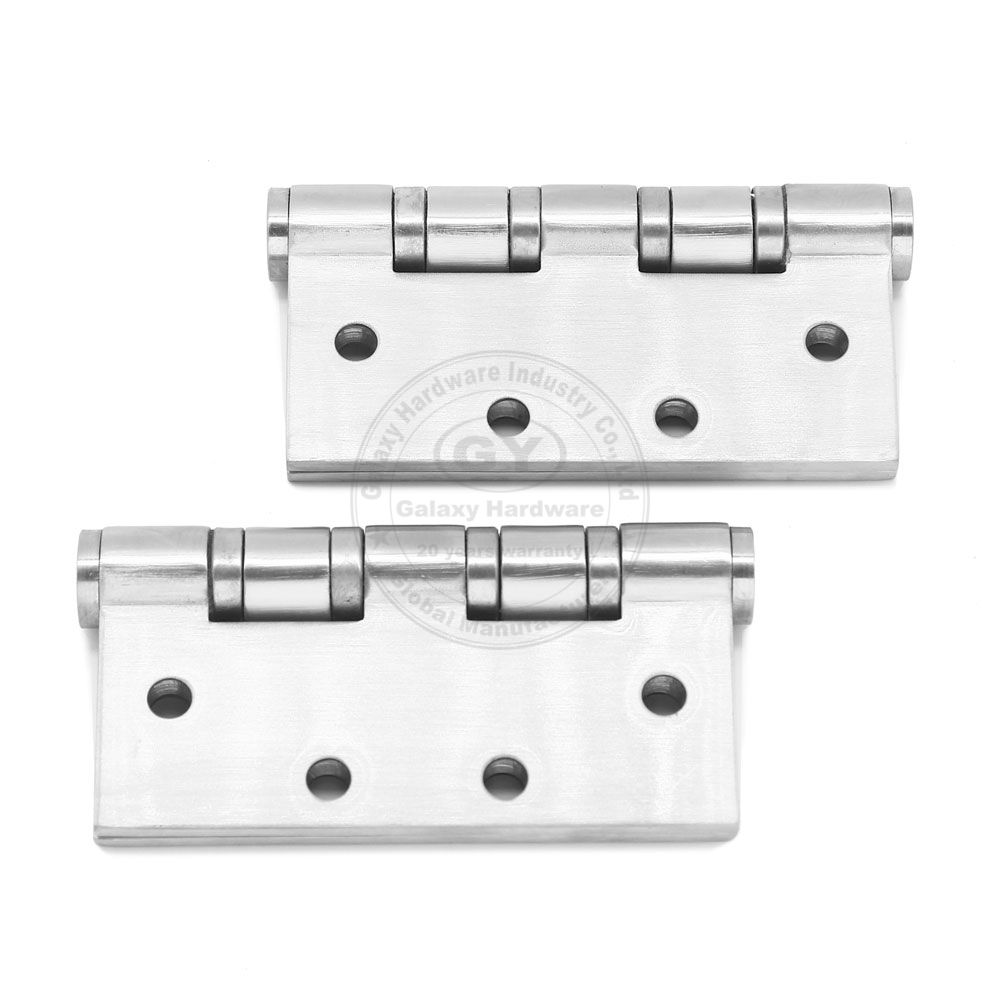

GY-454046-4BB

    • GY-454046-4BB, size: 4.5"x4.0"x4.6mm, 4 Ball Bearings, 5 Knuckles
    • GY Hardware
    • Mainly for wood doors, internal door; can be used for metal/steel doors
    • UL Listed, NFPA80, 3 Hours Fire Rated, being covered by UL's Certification and Follow-Up Service; Multiple-list (Co-listing) negotiable; OEM
    • Stainless Steel Grade 304 as standard, other materials SS316, SS201, even Steel
    • Satin Stainless Steel (SSS)/US32D as standard, others are workable upon request
    • Ex-works, FOB, CNF, CIF
    • Jiangmen , China
    • 500 Pair


  • Parameters
    • GY-454046-4BB, size: 4.5"x4.0"x4.6mm, 4 Ball Bearings, 5 Knuckles
    • GY Hardware
    • Mainly for wood doors, internal door; can be used for metal/steel doors
    • UL Listed, NFPA80, 3 Hours Fire Rated, being covered by UL's Certification and Follow-Up Service; Multiple-list (Co-listing) negotiable; OEM
    • Stainless Steel Grade 304 as standard, other materials SS316, SS201, even Steel
    • Satin Stainless Steel (SSS)/US32D as standard, others are workable upon request
    • Ex-works, FOB, CNF, CIF
    • Jiangmen , China
    • 500 Pair


UL Hinge, UL Listed Hinge, UL10 C Hinge, Fire Rated Hinge, ANSI  Hinge, BHMA Hinge, UL Door Hinge, UL Listed Door Hinge, UL Window

Certificate: UL Listed, 3 hours Fire Rated, UL10C and NFPA80.

Size:4.5"(114.3mm) X4.0"(101.6mm) X3.4mm, 0.134 Gauge

Material:Stainless Steel 304 as standard, other grades are workable.

Bearing: 2/4 Ball Bearings, residential grade or commercial grade

Pin:Fixed Pin, or Non-Removable Loose Pin(NRP), Non-Rising Loose Pin

Tip: Flat tips as standard, others, e.g., ball tips etc. are workable.

Screw: SS wood screw #12x1-1/4" (31mm), machine screw UNC 12-24x7/32"(imperial), or machine screw M6x12mm(metric)

Knuckle: 5 Knuckles

Full Mortise type, or Surface/Half Mortise Type

More other models(sizes) certified by UL as following:

Models (sizes), H=Height, W=Open Width, T=Thickness

1. Model #: SS403030-2BB/4BB (H * W* T, size: 4.0"x3.0"x3.0mm)

2. Model #: SS403530-2BB/4BB (H * W* T, size: 4.0"x3.5"x3.0mm)

3. Model #: SS404030-2BB/4BB (H * W* T, size: 4.0"x4.0"x3.0mm)

4. Model #: SS454030-2BB/4BB (H * W* T, size: 4.5"x4.0"x3.0mm)

5. Model #: SS454034-2BB/4BB (H * W* T, size: 4.5"x4.0"x3.4mm)

6. Model #: SS454530-2BB/4BB (H * W* T, size: 4.5"x4.5"x3.0mm)

7. Model #: SS454534-2BB/4BB (H * W* T, size: 4.5"x4.5"x3.4mm)

8. Model #: SS454046-2BB/4BB (H * W* T, size: 4.5"x4.0"x4.6mm)

9. Model #: SS454546-2BB/4BB (H * W* T, size: 4.5"x4.5"x4.6mm)

10. Model #: SS504034-2BB/4BB (H * W* T, size: 5.0"x4.0"x3.4mm)

11. Model #: SS504534-2BB/4BB (H * W* T, size: 5.0"x4.5"x3.4mm)

12. Model #: SS504046-2BB/4BB (H * W* T, size: 5.0"x4.0"x4.6mm)

13. Model #: SS504546-2BB/4BB (H * W* T, size: 5.0"x4.5"x4.6mm)

14. Model #: SS505046-2BB/4BB (H * W* T, size: 5.0"x5.0"x4.6mm)

Finish: Satin Stainless Steel (SSS) as standard, others are available upon request.

Accessories (fasteners): Supplied with SS wood screws and or machine screws;Metric or Imperial machine screws need to be consulted when order.
